Arc Shaped Magnets for BLDC Motors
Every part of a brushless DC (BLDC) motor matters. Windings, bearings, and controllers get plenty of attention. The magnets inside the rotor? Not so much. Yet they do some of the hardest work in the motor.
This post breaks down why arc shaped magnets for BLDC motors matter, how their geometry shapes performance, and how to choose the right permanent magnets for motors. If you design or source motor components, this is the detail that can make or break your results.
Why Arc Shaped Magnets Deserve Your Attention
Short on time? Here are the essentials before you read on:
- Better fit. Arc magnets follow the rotor’s curved surface for a consistent air gap.
- Higher efficiency. A uniform air gap lets magnetic flux distribute evenly with fewer losses.
- More torque. Smoother flux distribution improves torque density and power output.
- Quieter operation. Even magnetic coupling reduces vibration and noise.
Rotor Geometry: Why Shape Changes Everything

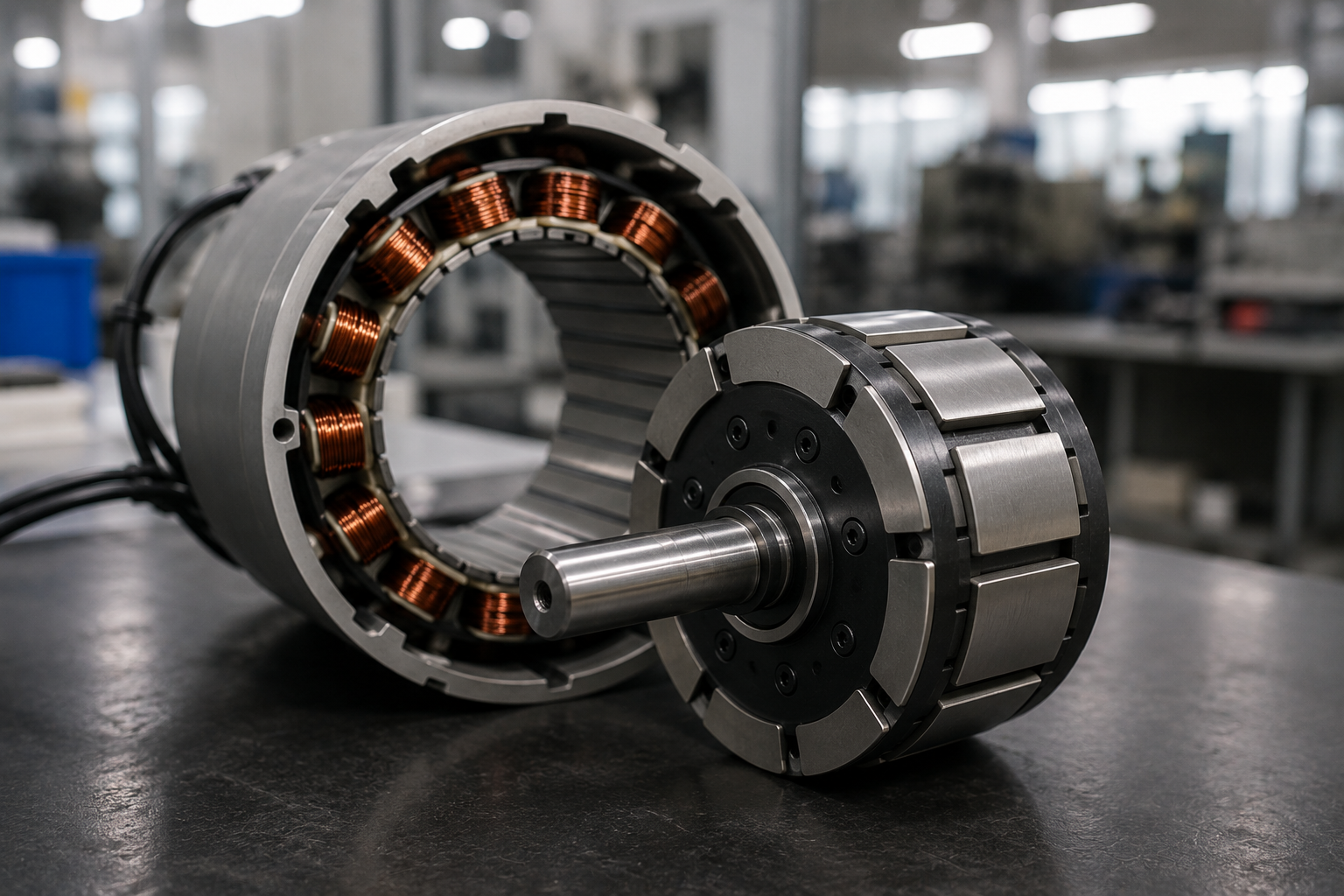

BLDC motors rely on permanent magnets mounted around a rotor. Because the rotor is cylindrical, arc shaped magnets conform to its surface naturally. Geometry isn’t just a manufacturing detail; it directly shapes how well your motor runs.
That curved design creates a more consistent air gap between the rotor magnets and the stator. A uniform gap allows magnetic flux to flow evenly, boosting efficiency and reducing energy losses. In high-performance designs, even small gains in flux distribution translate into real improvements in torque and power.
Arc Magnets vs. Block Magnets
When you compare arc magnets versus block magnets, the biggest difference comes down to fit.
Block magnets are flat, so they leave uneven gaps around the rotor. Those gaps weaken magnetic coupling and reduce torque. Arc magnets follow the rotor’s curve closely, delivering:
- More uniform magnetic flux
- Reduced air-gap variation
- Improved torque density
- Smoother, more reliable operation
That’s why arc shaped magnets have become the go-to choice for motors in robotics, aerospace, industrial automation, electric vehicles, and medical equipment.
How to Select the Right Permanent Magnets for Motors
Choosing permanent magnets for motors involves more than picking a material. Engineers should weigh:
- Magnet grade
- Operating temperature
- Coating requirements
- Magnetic orientation
- Dimensional tolerances
- Shape and geometry
Neodymium arc magnets are especially popular in BLDC motors. They deliver exceptional strength in a compact footprint, helping you build motors that are smaller, lighter, and more efficient. For demanding applications, custom arc magnet designs can match the exact dimensions and requirements of your finished assembly.
Build Better Motors with Precision Arc Magnets
Arc shaped magnets may seem like a small choice, but they deliver measurable gains in efficiency, stability, and power density. As BLDC motors power more of the world around us, that precision matters more than ever.
Ready to optimize your next motor design? Contact BJA Magnetics today to discuss custom-engineered arc magnets built for the performance standards you need.
